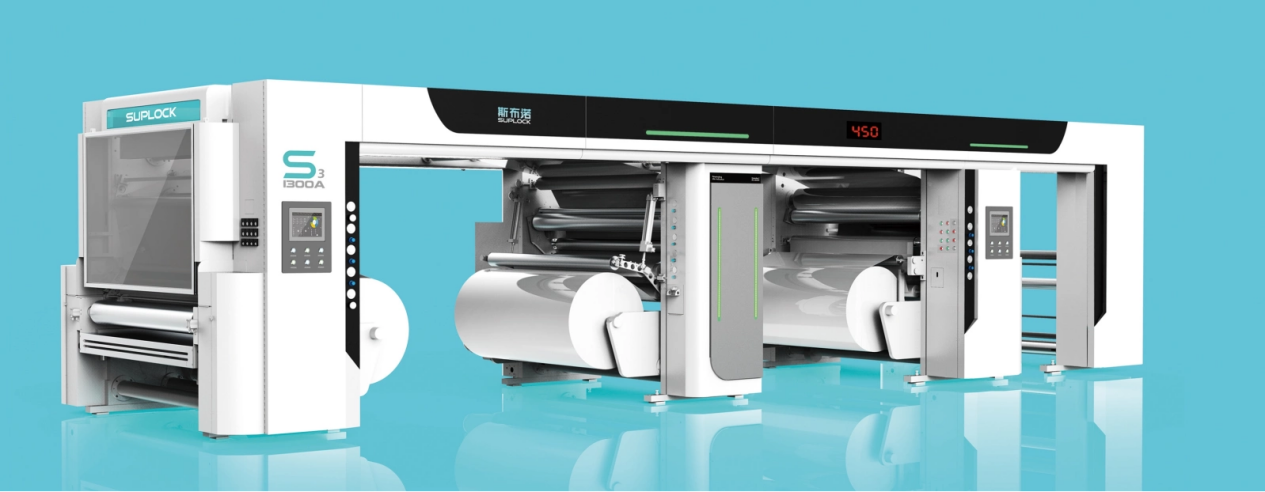

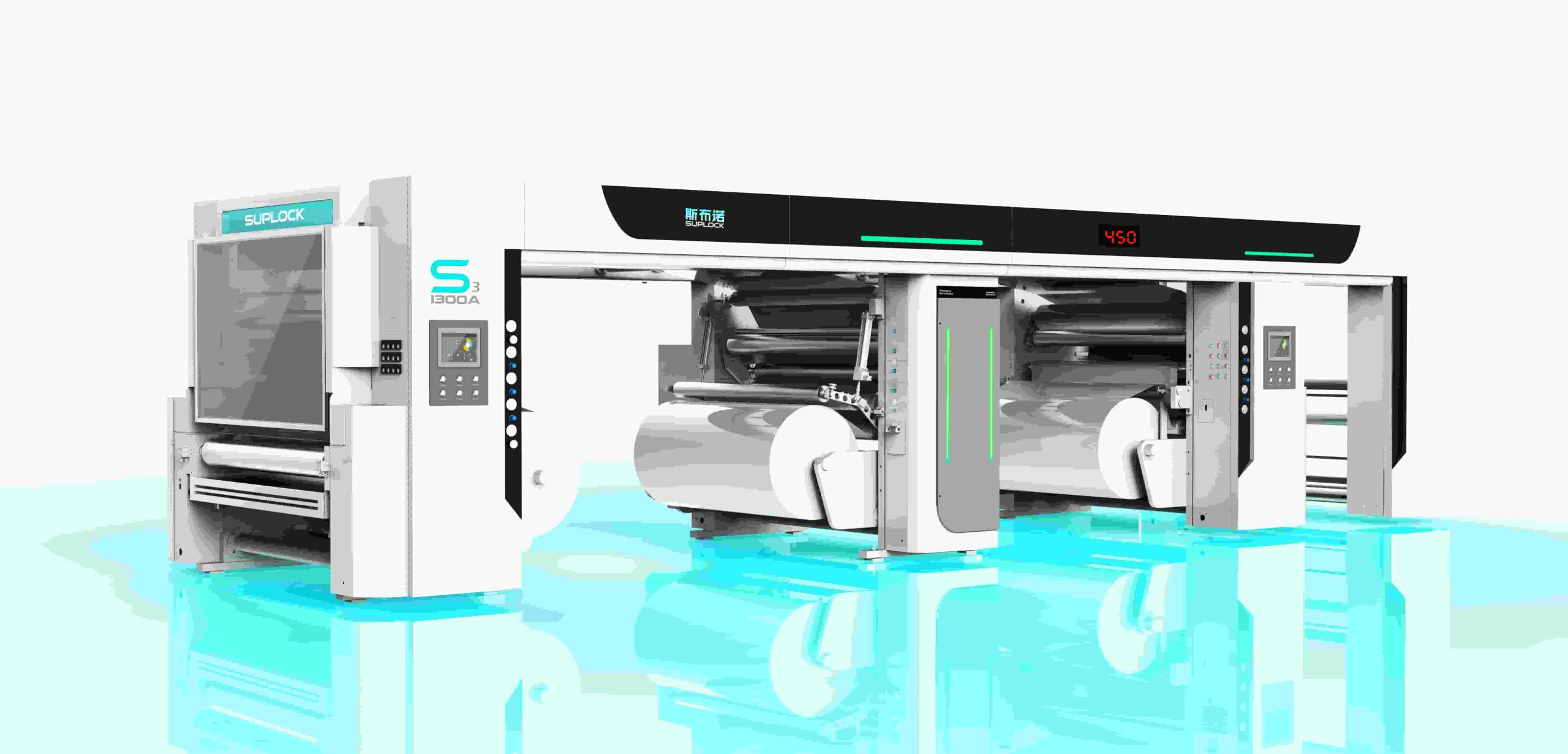

S3 Triplex Solventless Laminating Machine
Low-position aluminum foil loading, short path, no back penetration for aluminum foil
The S3 triplex solventless laminating machine is SINSTAR SUPLOCK‘s brand of high-speed solventless laminator. As a high-performance triplex lamination machine, it’s one of the most popular compounding models on the market. It’s designed for the multi-layer lamination of various types of plastic film, metallized film, aluminum foil, and paper. Due to the ability to co-laminate the three layers of materials, efficiency in production, particularly the pinhole issue in 006 aluminum foil, is successfully resolved.
This automatic high production multi-layer laminating machine uses world-class components to ensure its parameters remain on target stably. Its tension system uses advanced digital technology and can control up to 300 work orders, which greatly enhances operational accuracy and production management. For the best quality multi-layer laminate products in high quantity, the S3 3-in-1 solventless laminating machine is the best solution available in the market.
Features of S3 Triplex Solventless Laminating Machine
Features a three-roller back pressure laminating mechanism for consistent, high composite quality.
Hard surface tungsten-carbide coated rollers provide 5 times greater wear resistance.
Automatic accuracy on the amount of coating ensures uniform coating.
Accurate measurement is achieved by two motors working with mechanical brakes to high viscosity.
One-click limiting roller positioning ensures reliable coating pressure and easy cleaning.
The ratio of glue is set in a very simple manner with one click.
The unique 4-ratio protection system makes quality assurance very reliable.
Exceptional stable tension control is achieved by 5 spindle servo motors with a tension linkage system.
Constant and consistent rewinding is achieved by fuzzy mathematical calculation and adaptive taper tension control.
Specification of S3 Triplex Solventless Laminating Machine
Maximum laminate speed 450 m/m
Maximum laminate width 1350 mm
Maximum unwinding diameter 800 mm
Maximum rewinding diameter 800 mm
Material loading mechanism shaftless loading
Reel diameter 3+6 inches
