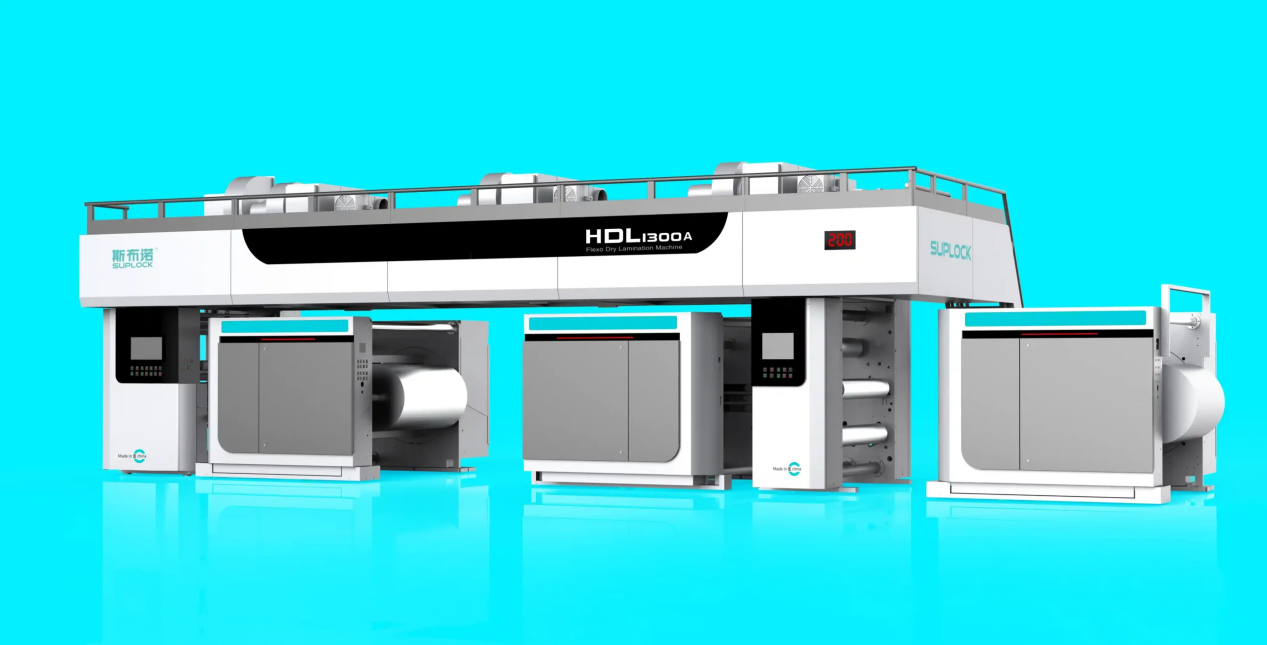

HDL Double Station Hard Dry Lamination Machine
Save ¥3M ($420K) vs gravure dry lamination
Compared with the traditional hard dry lamination machine, SUPLOCK Hard Dry Lamination Machine can save up to CNY 3 million (USD 420k ) in production costs. Meanwhile, it uses glue with a solid content of 75% for direct coating without the need for additional solvents, and has higher energy efficiency and environmental protection performance.
Introduction
As a leading manufacturer of solvent-free laminating machines in China, Sinstar has launched the world’s first solvent-free dry laminating machine. A hard dry laminating machine is an industrial device that uses heat-curing adhesives (usually solid or high-solid-content adhesives) to achieve material lamination under high temperature and high pressure conditions. It belongs to a type of Dry Lamination technology.
Compared with traditional solvent-based lamination, the entire process does not use or almost does not use solvents. Through heating rollers and lamination systems, the adhesive melts and solidifies, thereby firmly bonding two or more layers of substrates. Used for high strength, heat resistance, high corrosion resistance requirements of packaging materials production: aluminum foil composite film, industrial insulation materials, functional thin films, electronic film, food, medicine packaging laminated material, etc.
Main Advantages
Zero addition of ethyl acetic when working
Save 0.3g of glue per m² vs gravure dry lamination
Mature dry lamination technology
Direct coating of high-viscosity glue
Heating energy consumption accounts for just 16% of gravure dry lamination
Zero glue waste when switching orders
Direct input of coating amount
Direct detection of coating amount
Applications
High Rigidity & Flatness Materials
Suitable for cardboard, art paper, white card, gray board, and labels that require lamination without warping, wrinkling, or deformation.
Thick or High-Rigidity Films
Ideal for PET, PC, PVC, BOPP, optical and protective films where precise alignment and tension control are critical.
High Surface Quality Products
Perfect for luxury packaging, gift boxes, and premium printed materials requiring bubble-free, smooth, and flawless lamination.
Solvent-Free & Eco-Friendly Applications
Designed for food packaging, pharmaceutical materials, and personal care products where solvent use (e.g., ethyl acetate) is prohibited.
Specification of Double Station Hard Dry Lamination Machine
Maximum laminate speed 350 m/m
Maximum laminate width 1350 mm
Maximum unwinding diameter 800 mm
Maximum rewinding diameter 800 mm
Material loading mechanismshaftless loading
coating weight1.5gsm – 4.5gsm
