Solventless Laminating Machine: Changeover and Care

A solventless laminating machine is judged on its speed and its width while it is sitting on the showroom floor. It is judged on something entirely different six months later, on the floor of a converter, when the operator has to switch adhesives between two film structures and the line has been running two shifts straight. The difference between the two machines is the changeover routine and the maintenance that keeps the coating station honest.

THE COATING STATION IS WHERE IT BREAKS

Solventless lamination removes the drying tunnel, which is the whole point: no solvent to evaporate, no high-temperature oven, and on a machine like the WRJ Fi9 that removes a maintenance burden as well as an energy one. But it concentrates every other failure mode onto the coating station, where the adhesive is metered, mixed and transferred to the web. Two things at that station decide whether the machine holds quality across a shift: the mixing ratio, and how clean the metering and coating rollers stay. A two-part polyurethane adhesive that is off ratio by a few percent will not fail at the roller. It fails later, as tunnelling, weak bond or white spots in the finished reel, long after the job has been wound and shipped. That is the expensive way to discover a ratio error.

MIXING RATIO BEFORE SPEED

The first number an operator should be able to read back is the mixing ratio, not the line speed. On the S1 Digital solventless laminator the adhesive is proportioned automatically, with a four-level proportional protection mechanism so that a ratio that drifts outside tolerance is caught before it coats. Coating weight is set by one-click input rather than by hand-dialling the pump, which removes the most common human error at changeover. That matters because the machines in this class run fast enough that a bad batch travels far before anyone sees it. The WRJ i9 and the WRJ Fi9 both laminate at up to 450 m/min, the S1 Digital at up to 500 m/min. At those speeds a ratio fault committed at the start of a shift has become a full wound reel before the next sample check.

THE CHANGEOVER THAT SIZES YOUR SHIFT

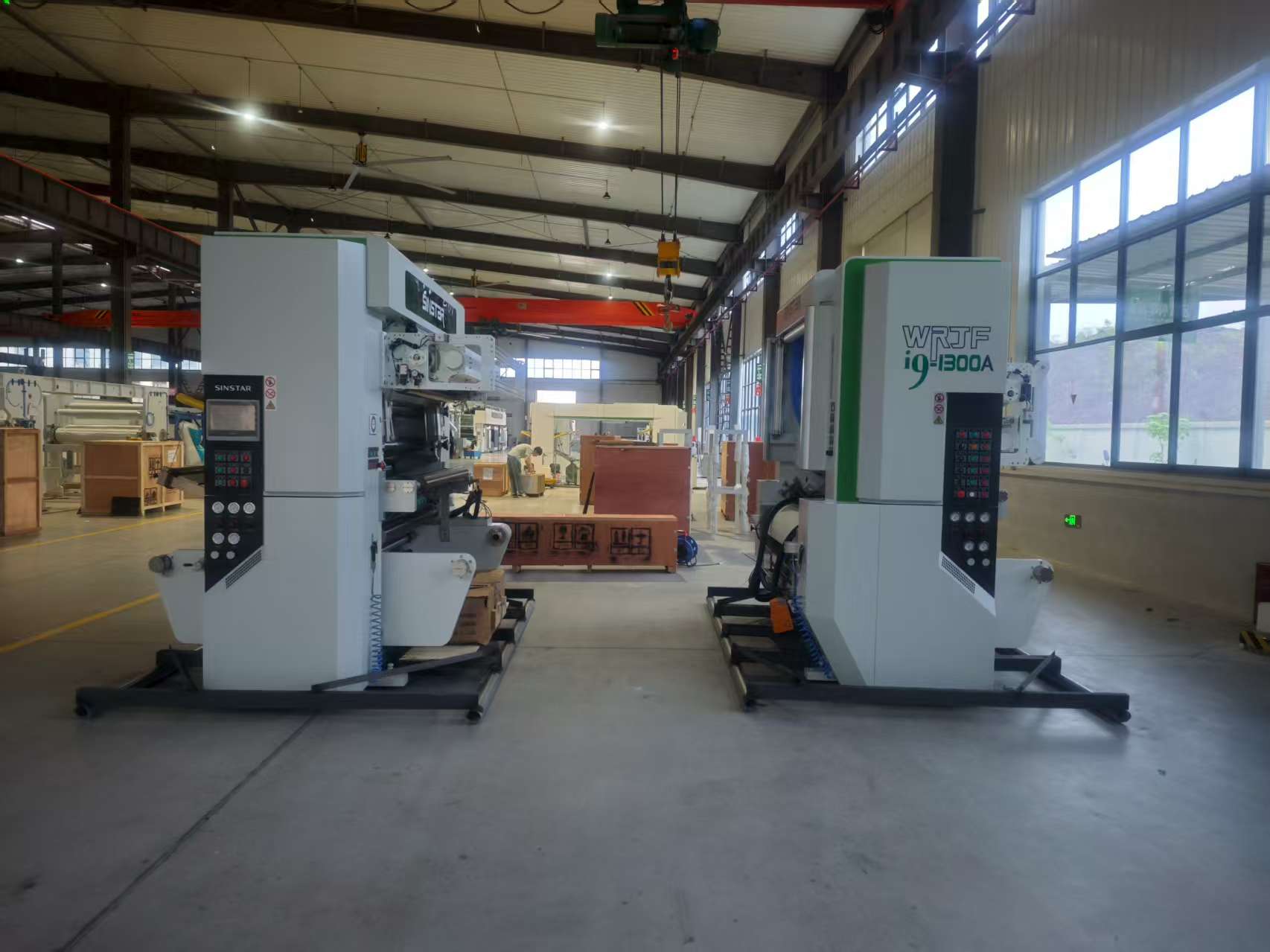

Changeover is where a laminator earns its keep for a converter that runs short runs and many film structures. The number that matters is not the maximum speed but the time between the last good metre of one job and the first good metre of the next. A machine with recipe storage shortens that window. The WRJ Fi9 uses a full PLC control system with a touchscreen HMI that stores multiple production recipes, so a change from a PET/PE structure to a BOPP/CPP structure is a recipe recall rather than a manual re-entry of every parameter. Closed-loop tension control and precise adhesive weight measurement carry the new settings across the whole web width, which is what keeps the first metre of the new job as clean as the last metre of the old one. Cleaning is the part of changeover no specification sheet quotes. The metering roller, the transfer roller and the doctor setup all carry residual adhesive, and a two-part system begins to cure the moment the parts mix. A clean changeover means the adhesive path is flushed and the rollers are wiped before the new ratio is introduced, not after the first bad reel of the new job. Trade coverage such as Converting Quarterly keeps returning to adhesive handling for the same reason: it is where the changeover is won or lost.

PREVENTIVE MAINTENANCE, NOT REACTIVE

The maintenance that keeps a solventless laminator running is front-loaded and boring, which is exactly why it works. The highest-wear surface at the coating station is the roller in contact with the web, and on the S1 Digital that roller carries a tungsten carbide coating with wear resistance enhanced by five times compared to a conventional roller. That is not a spec to brag about in a brochure; it is the difference between a planned roller check every scheduled window and an unplanned stop when surface wear shows up as coating weight drift. Tension is the other silent maintenance item. Multi-stage tension control on the WRJ i9 and adaptive tension control with intelligent rewinding taper on the S1 keep the web flat without the operator chasing a setting mid-run. When a laminator starts showing intermittent wrinkles that appear and disappear, the first place to look is not the adhesive but the tension and the cleanliness of the idler path. The Flexible Packaging Association documents the same front-loaded discipline across the converting floor: scheduled care beats a reaction to a failed reel.

WHAT TO ASK THE SUPPLIER BEFORE ORDERING

Four questions separate a laminator that stays consistent from one that looks identical on the datasheet. How is the mixing ratio set and protected — automatically proportioned with a protection mechanism, or manually set by the operator on the pump. The answer tells you how many changeovers will go wrong. What is the changeover sequence, and what does the supplier's own recipe storage save you when you run PET/PE in the morning and BOPP/CPP in the afternoon. Ask for the sequence in writing, step by step. What is the roller surface treatment and its wear rating, and what is the scheduled check interval. Tungsten carbide with five-times wear resistance is a maintenance number, not a sales point. What is cleaned at changeover and what is left to the operator. The cleaning that is designed into the sequence is done; the cleaning that is left to memory is not. These are the questions XIAOPAI is prepared to answer in writing before a quotation is drawn.

WHAT XIAOPAI DOES IN THIS

XIAOPAI - Wenzhou Xiaopai Electric Power Technology - works with long-established Chinese manufacturers to supply solventless laminating equipment for flexible packaging converters. The solventless laminators in the line, the WRJ Fi9, the WRJ i9 and the S1 Digital, are supplied under the SINSTAR authorization, which is a distribution relationship and is stated as such rather than claimed as in-house manufacture. The figures quoted here come from the machine documentation for those three models. A laminator that publishes its mixing-ratio protection, its changeover sequence and its roller maintenance schedule can be compared against another one on something that will still matter six months after installation. That is the comparison XIAOPAI wants a converter to be able to make, because a machine is only as good as the care that keeps it consistent.
